[GROUP BUY] Alyssia by STARTS NOV 19

[GROUP BUY] Alyssia by STARTS NOV 19

Regular price $430.00
Regular price Sale price $430.00
Sale Sold out

GROUP BUY WINDOW: November 19, 2023 @12 noon CST -- December 17, 2023 end of day
MOQ 50 units, Max 100 total units

Direct link to add-on components:

Patty and I are teaming up to bring this project to life! I am excited to be the vendor for this project.

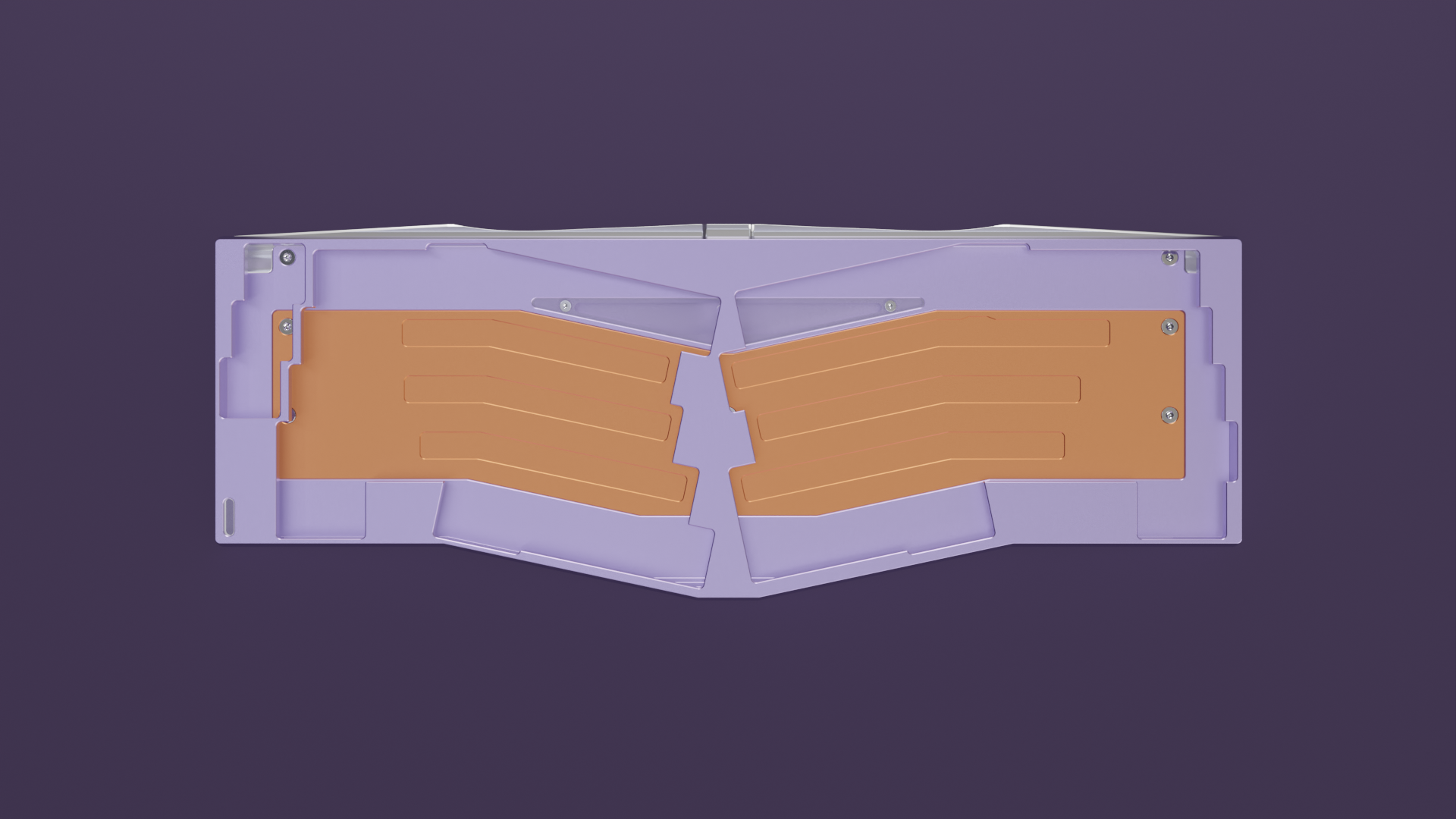

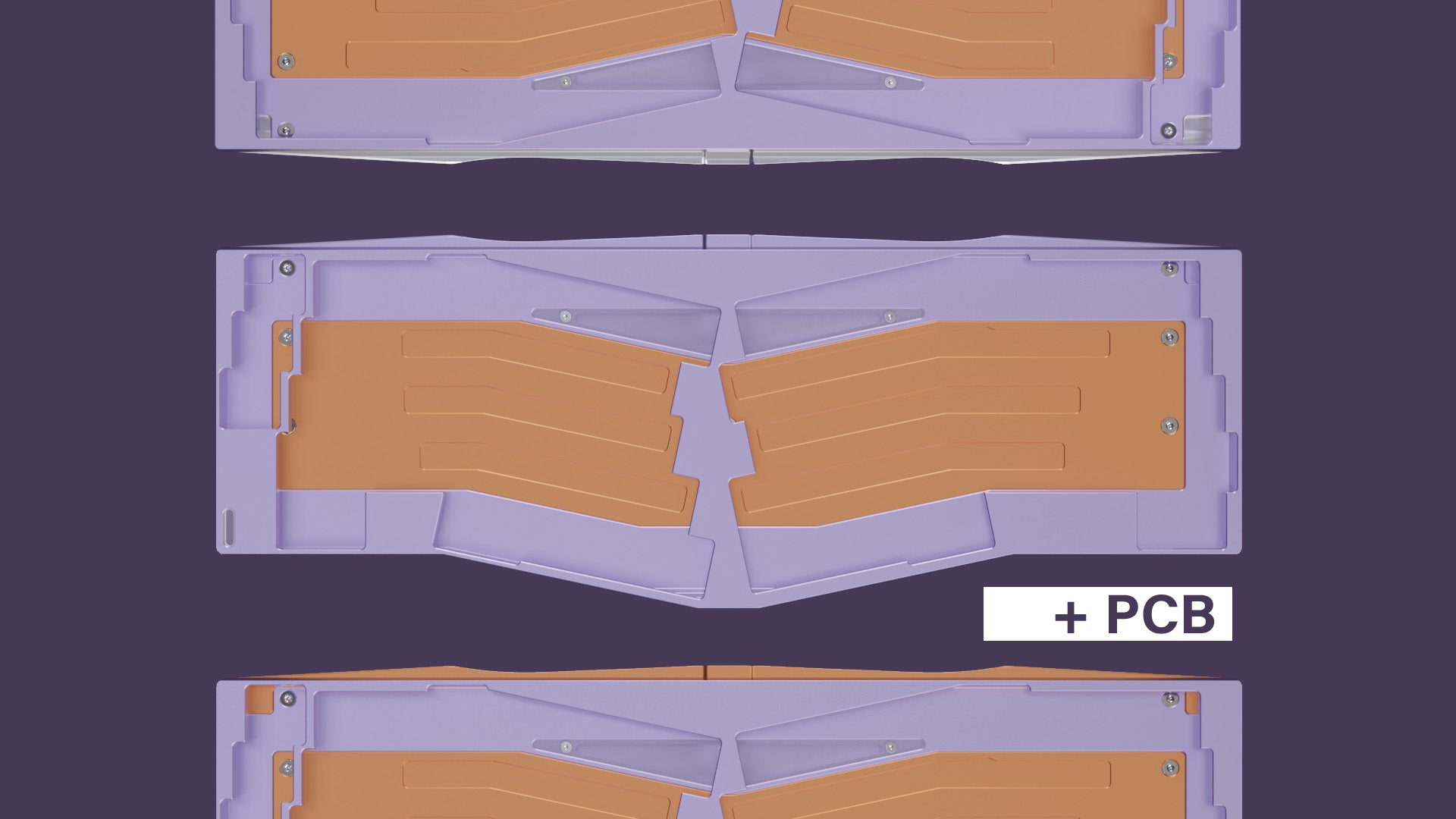

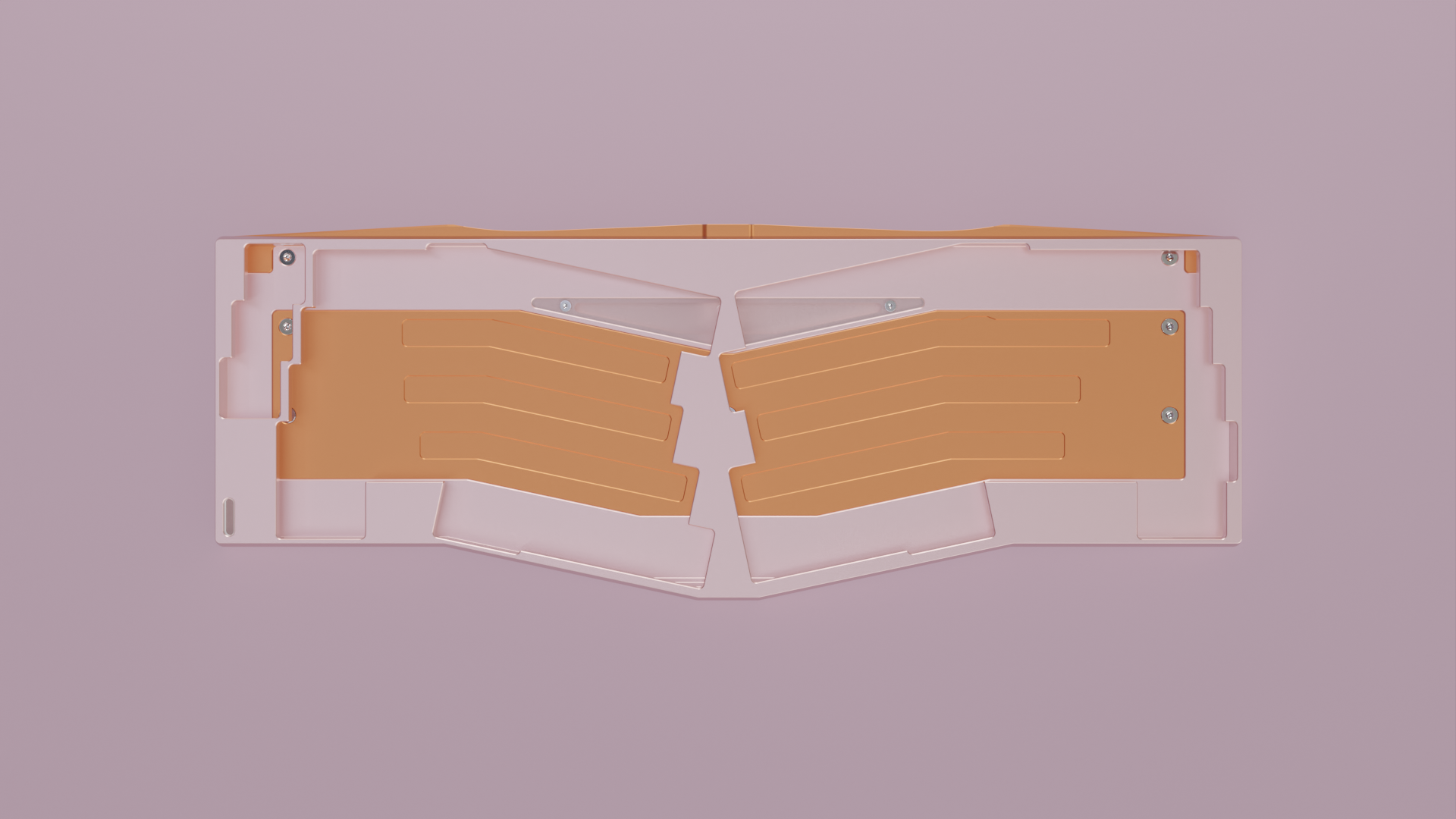

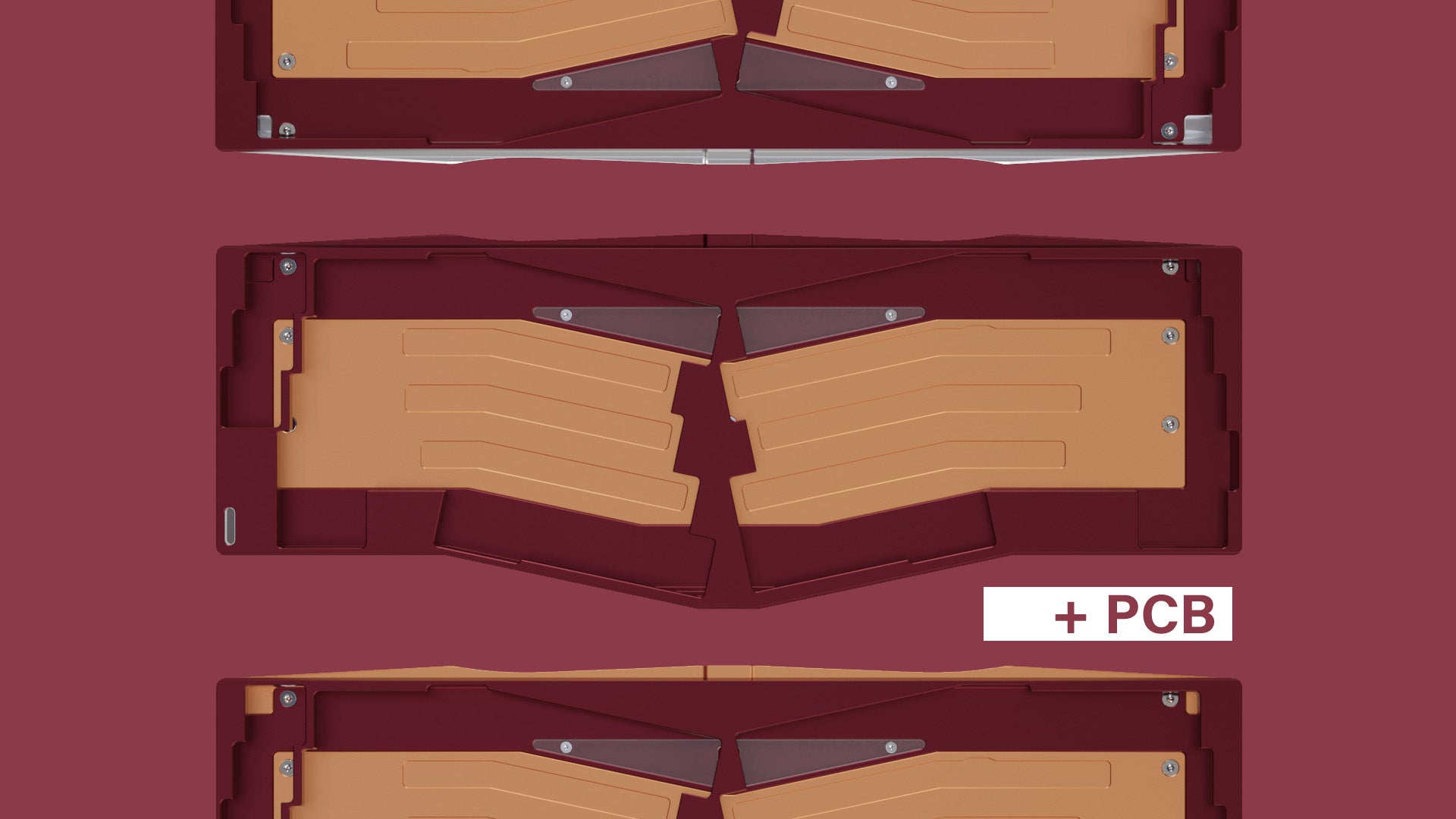

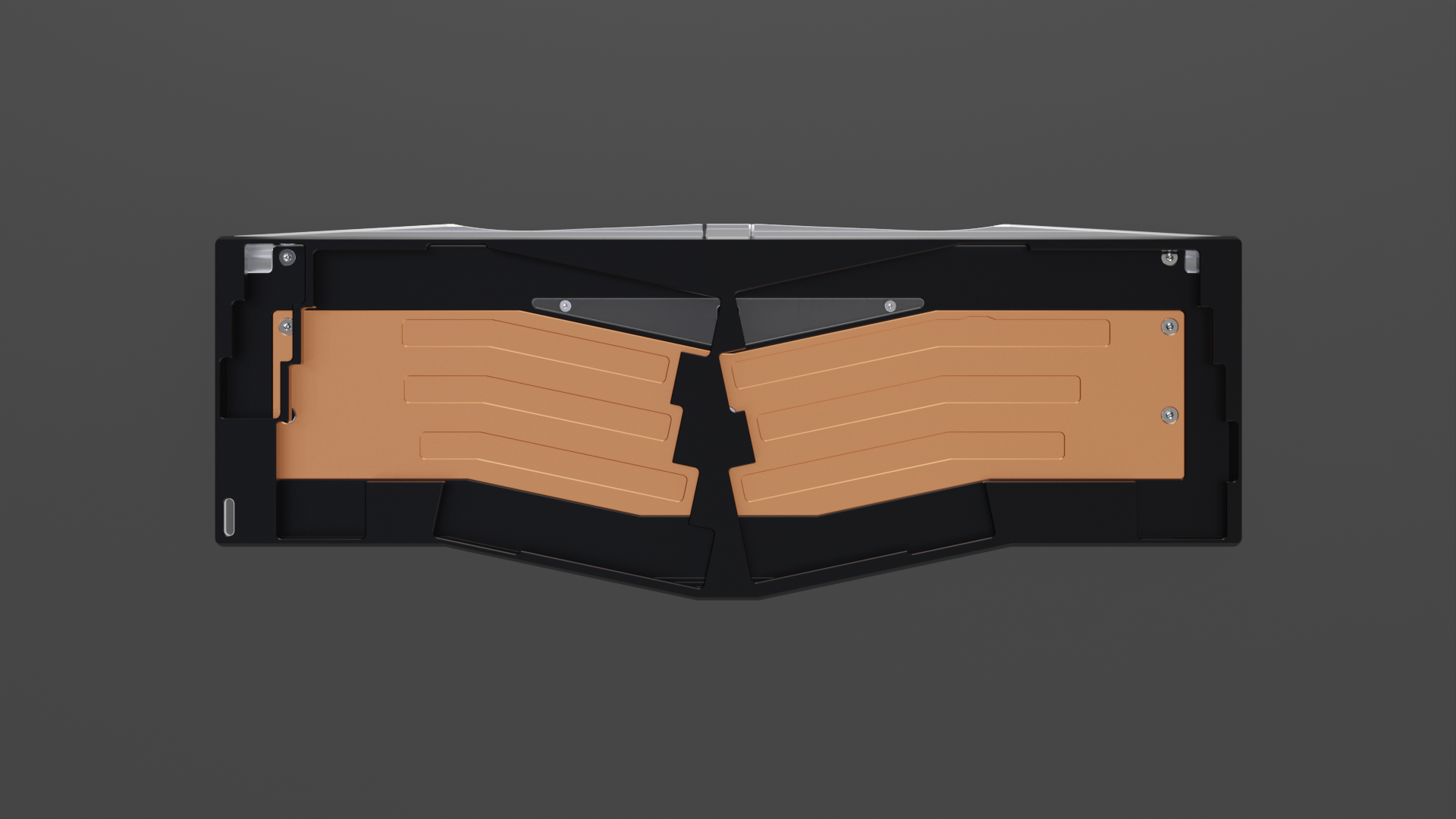

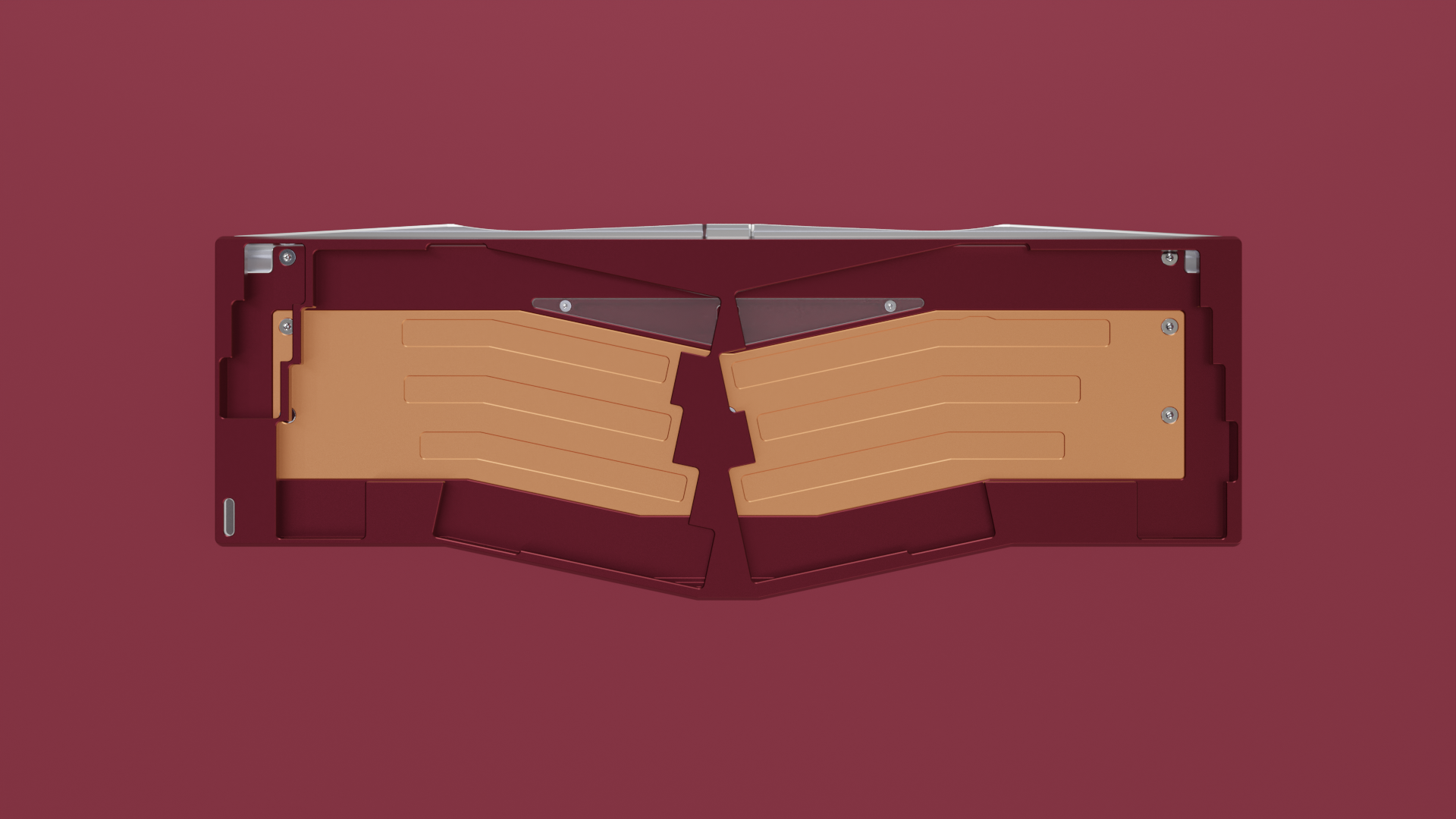

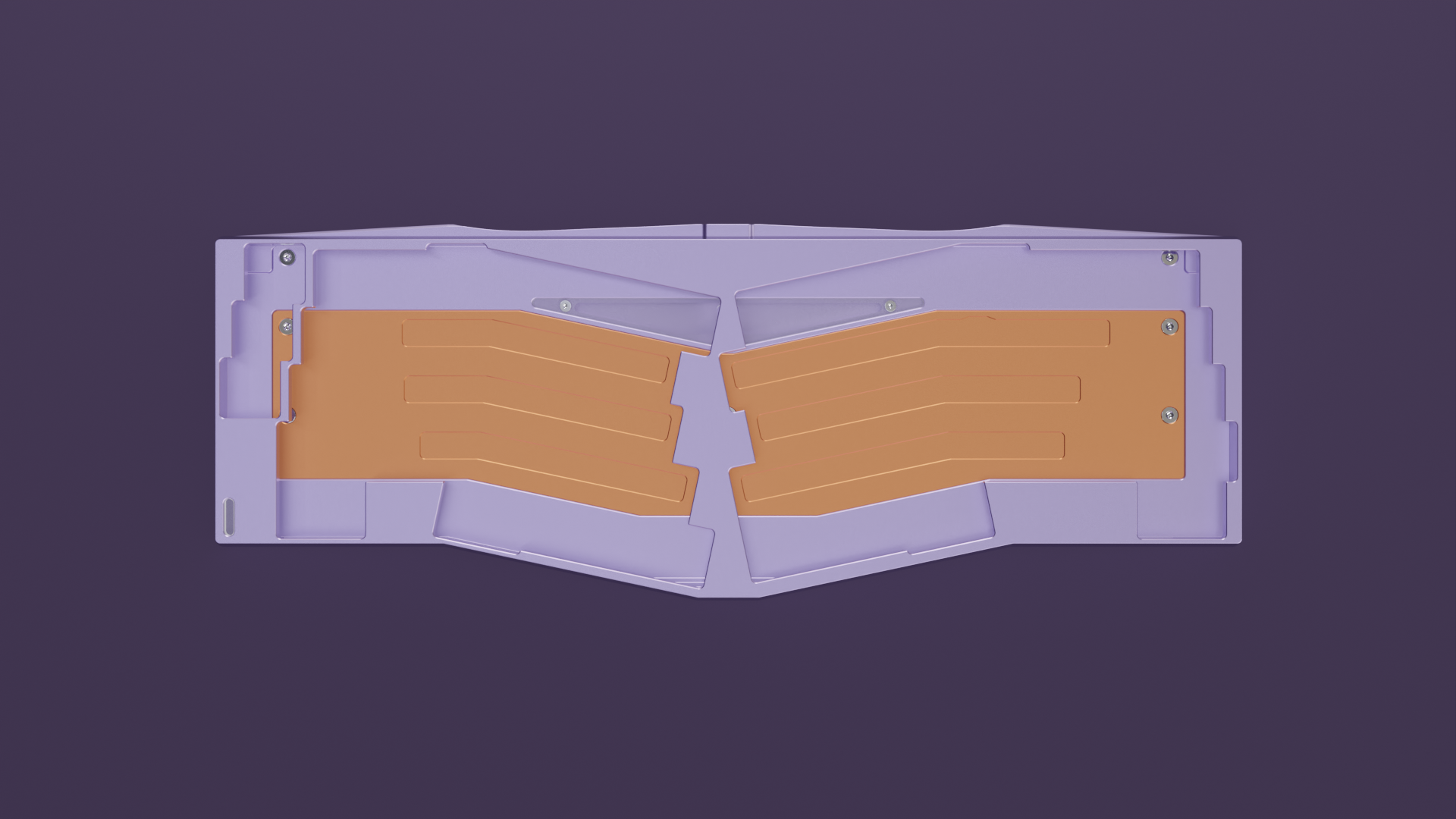

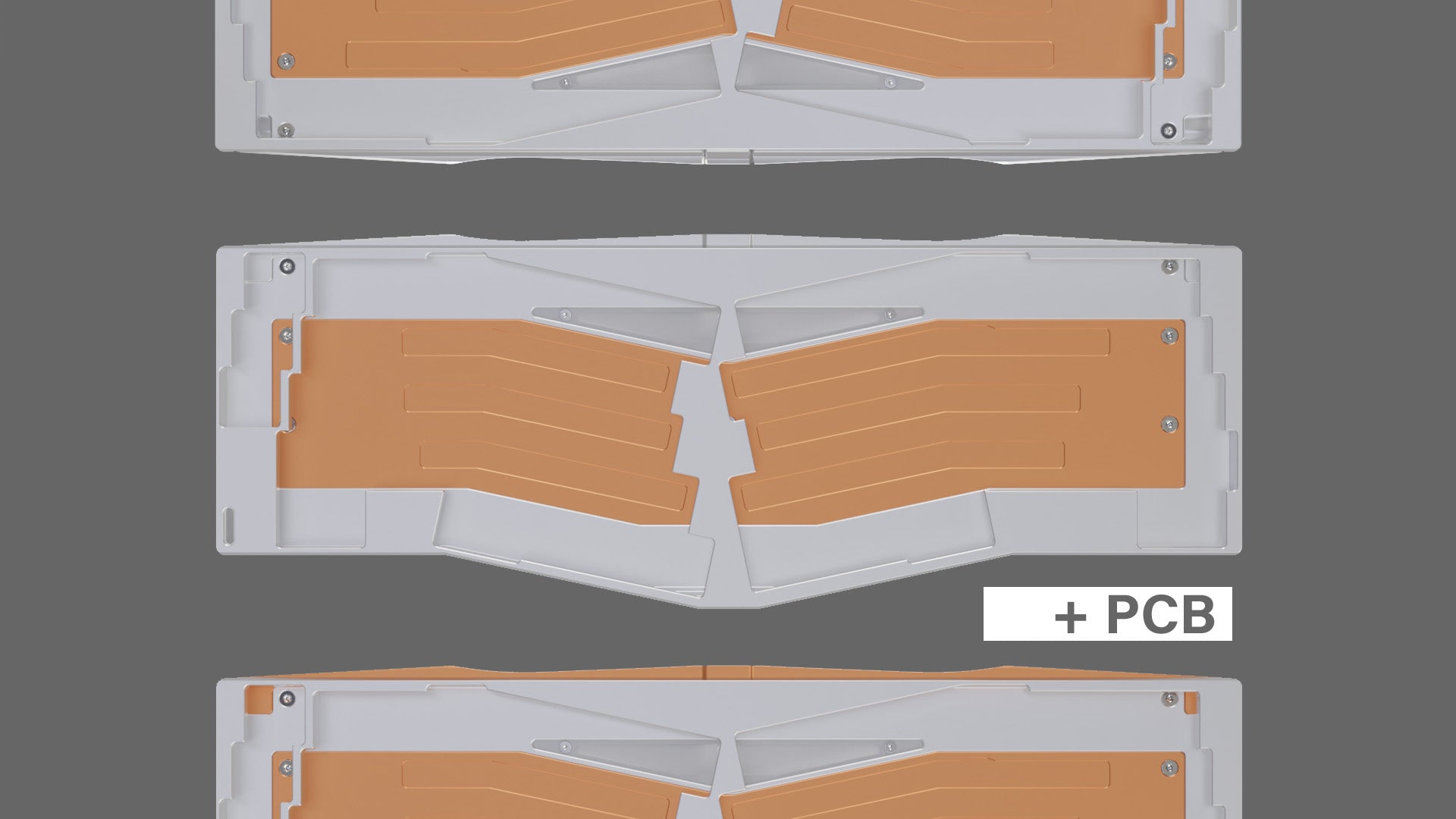

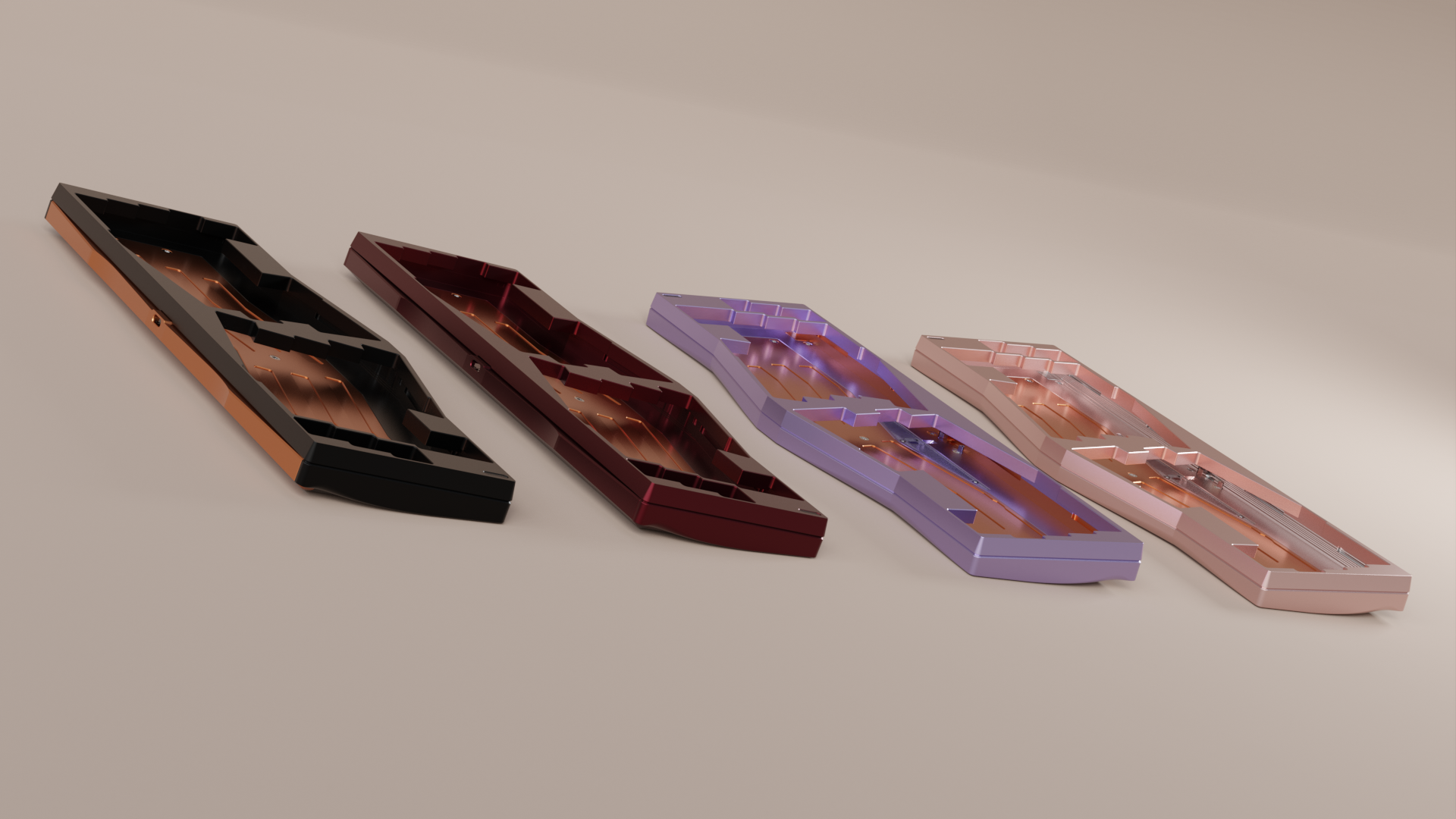

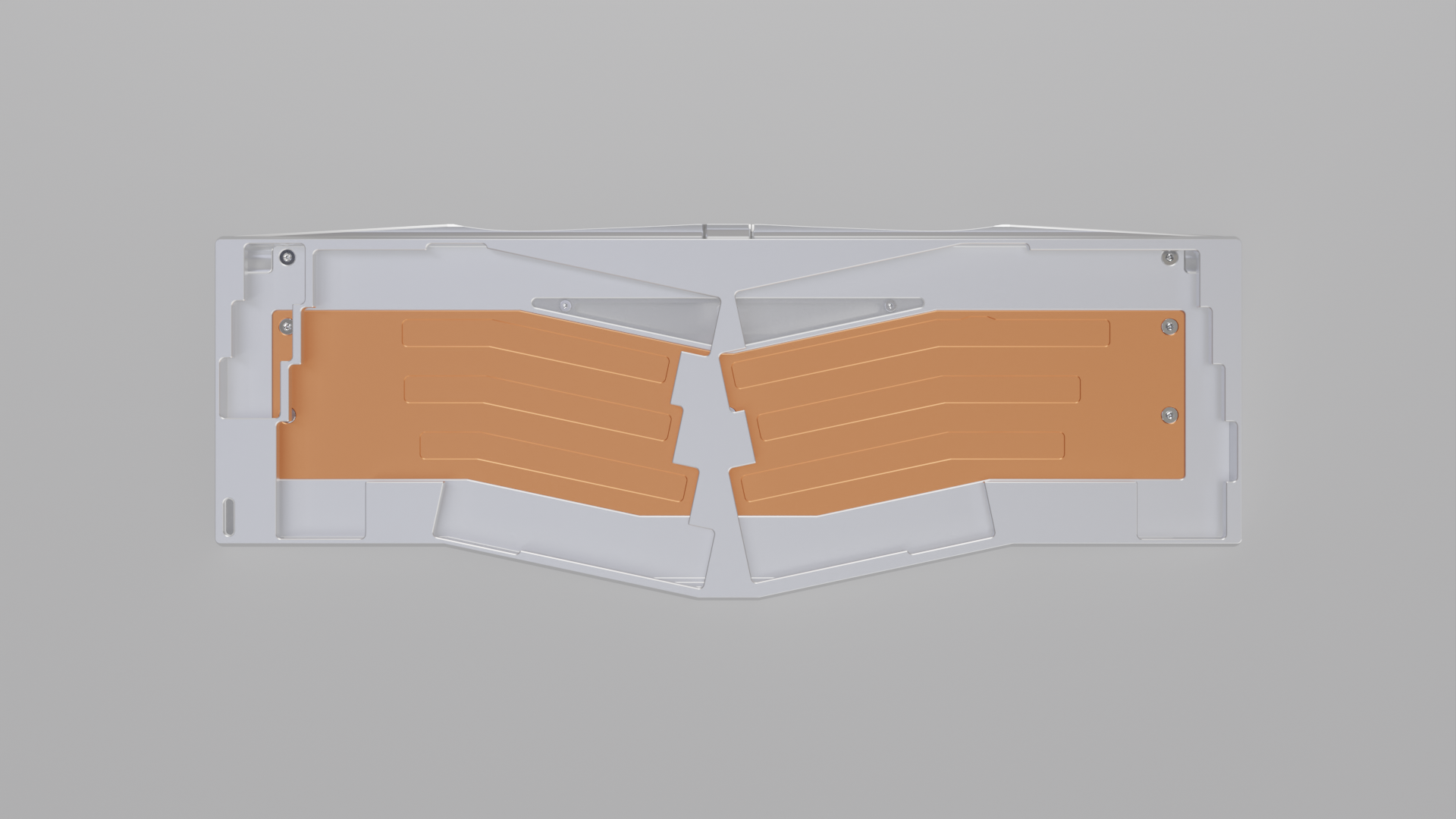

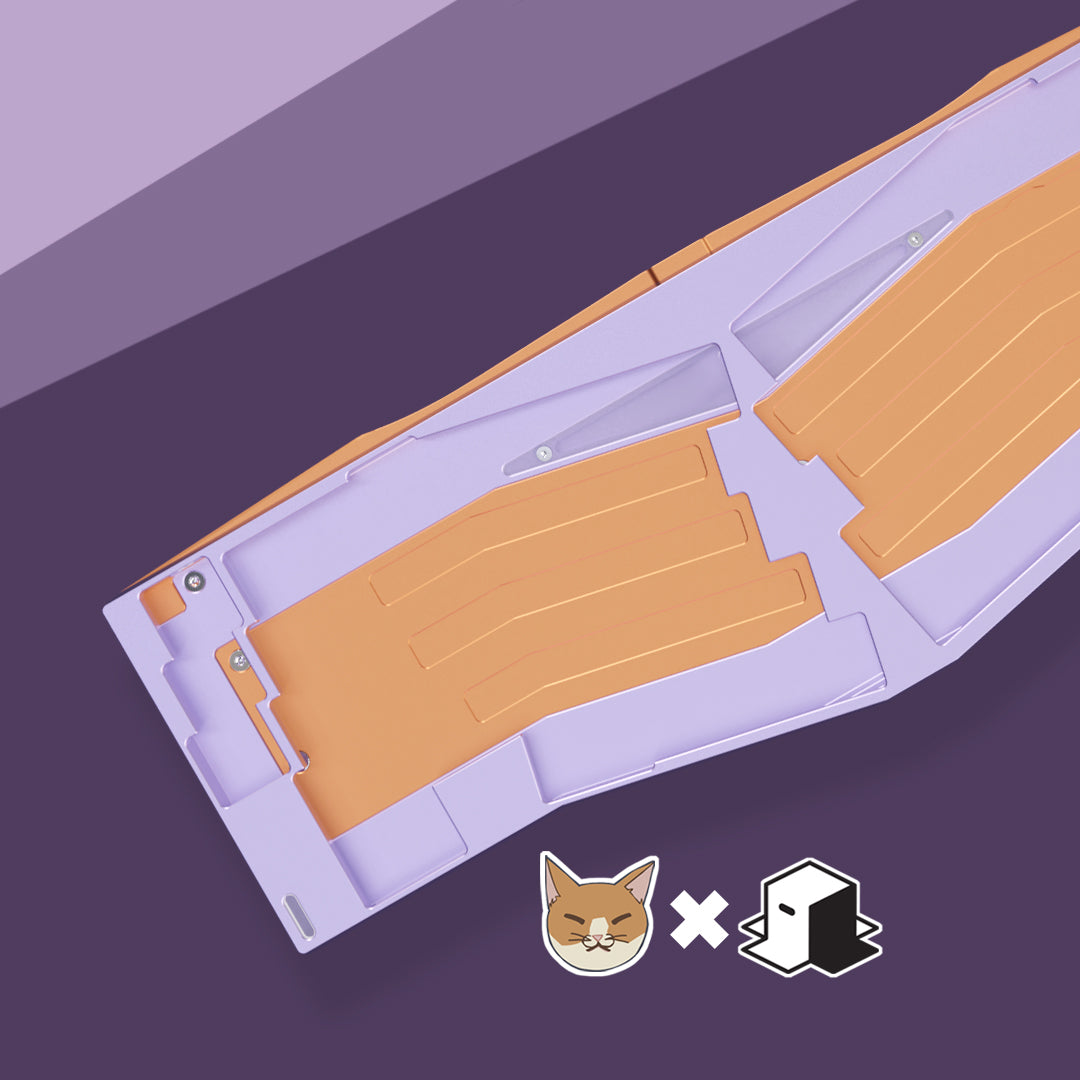

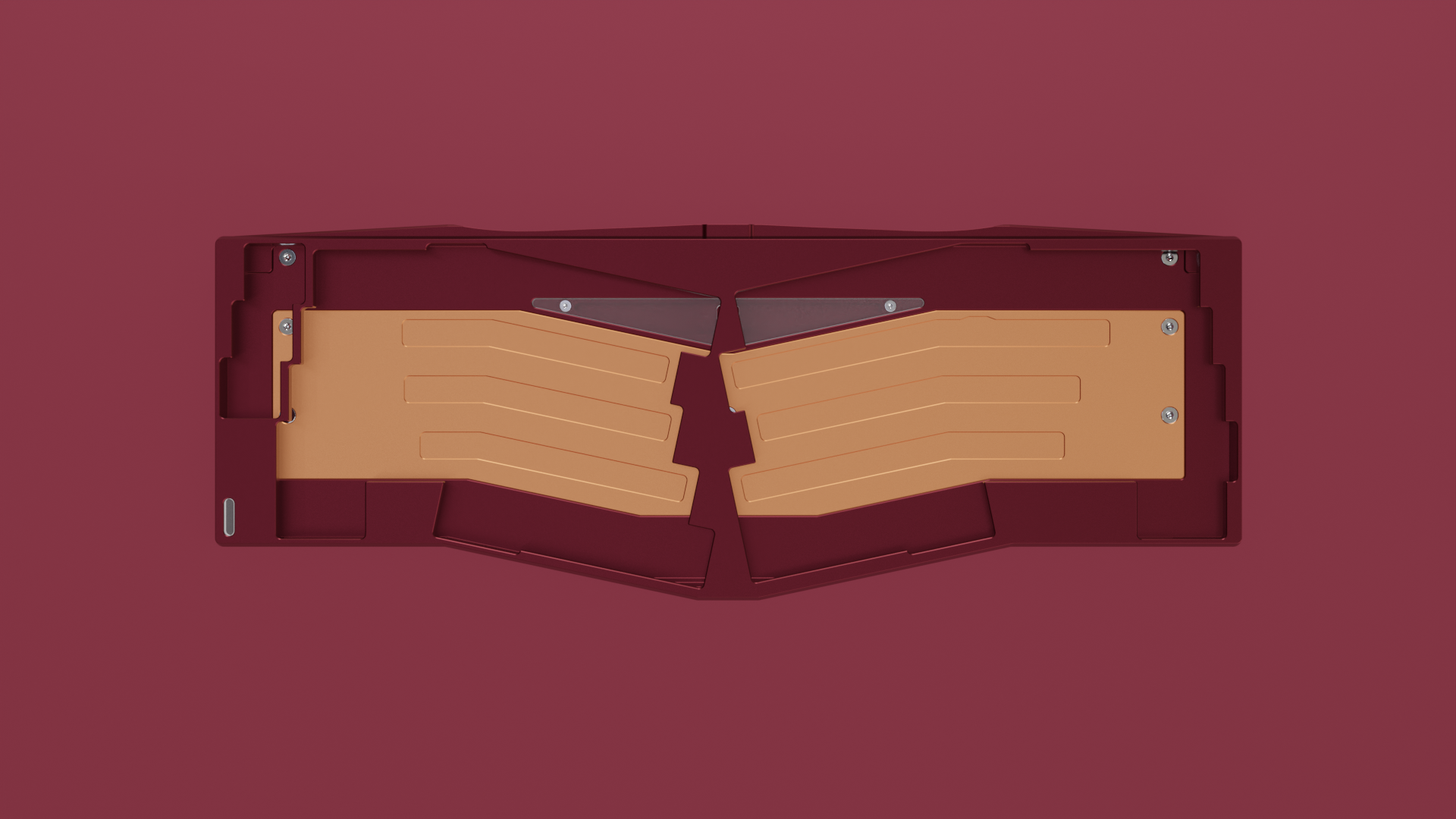

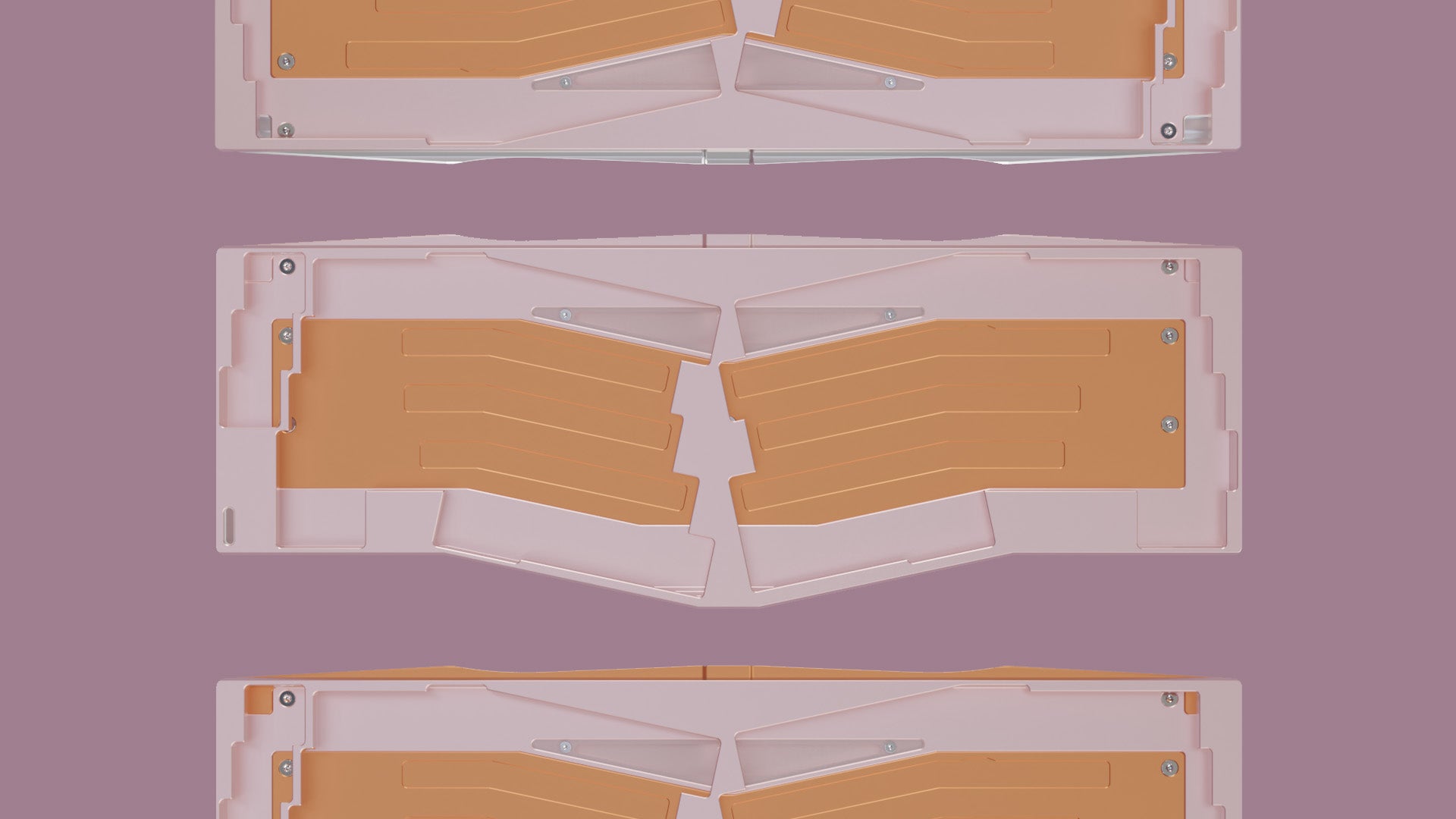

 Note: The images on this page are renders and are meant to show approximate colors, for a better idea, please refer to the build videos already published:





- Anodized aluminum case with sleek bezel profile designed by Patty
- Classic Alice layout keyboard powered by AliceClone + M5 Sneakbox PCBs with 12-degree chin
- Mounting Style: O-Ring tab gasket mount, top mount
- Typing angle: 4 degrees
Board front height: 18.5mm (measured at chin)
- Effective Keyboard Height (Table surface to the top of the switch stem on bottom row): 22.64mm/23.64mm with feet (measured at right alt)
- Materials:

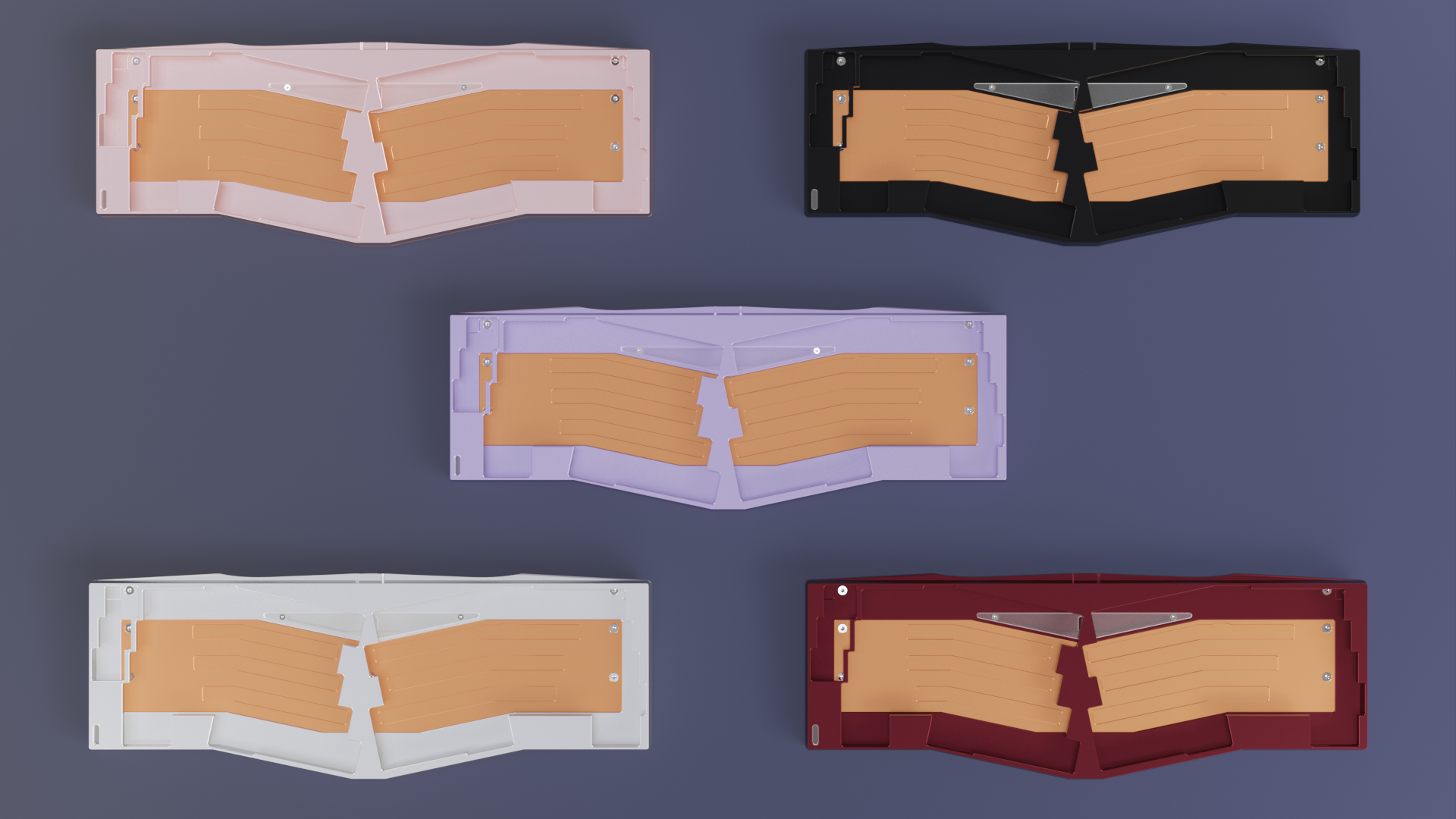

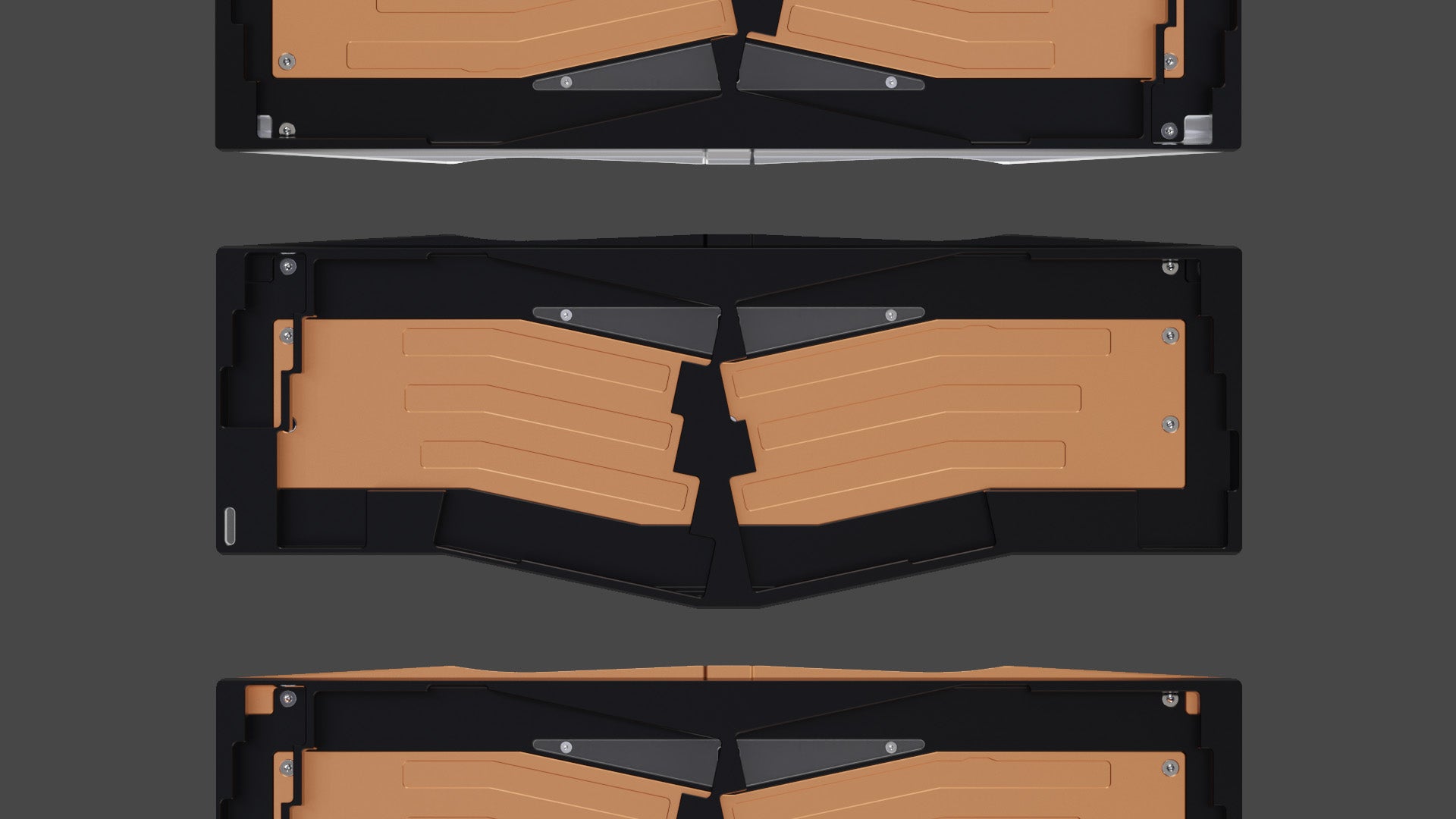

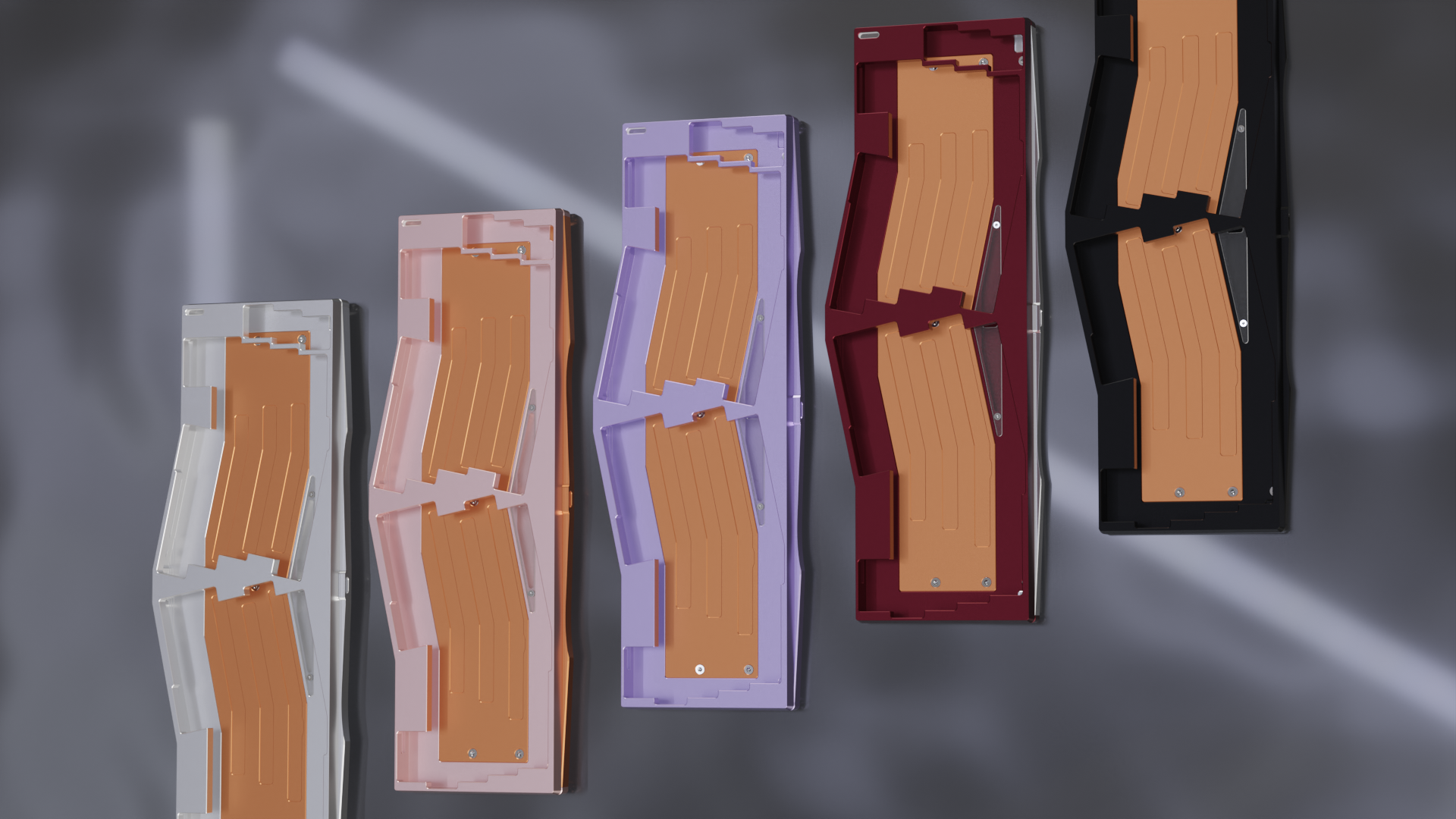

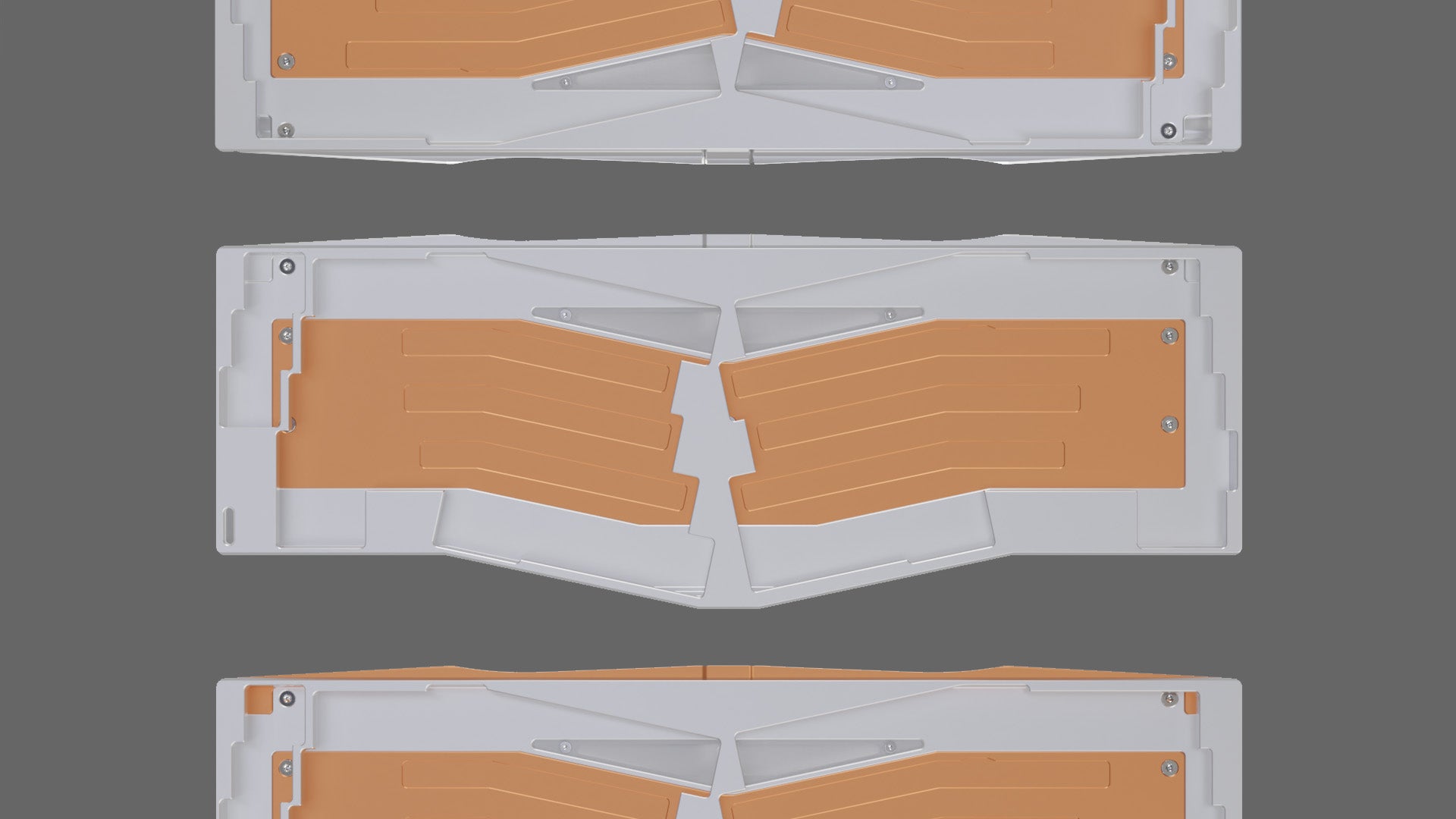

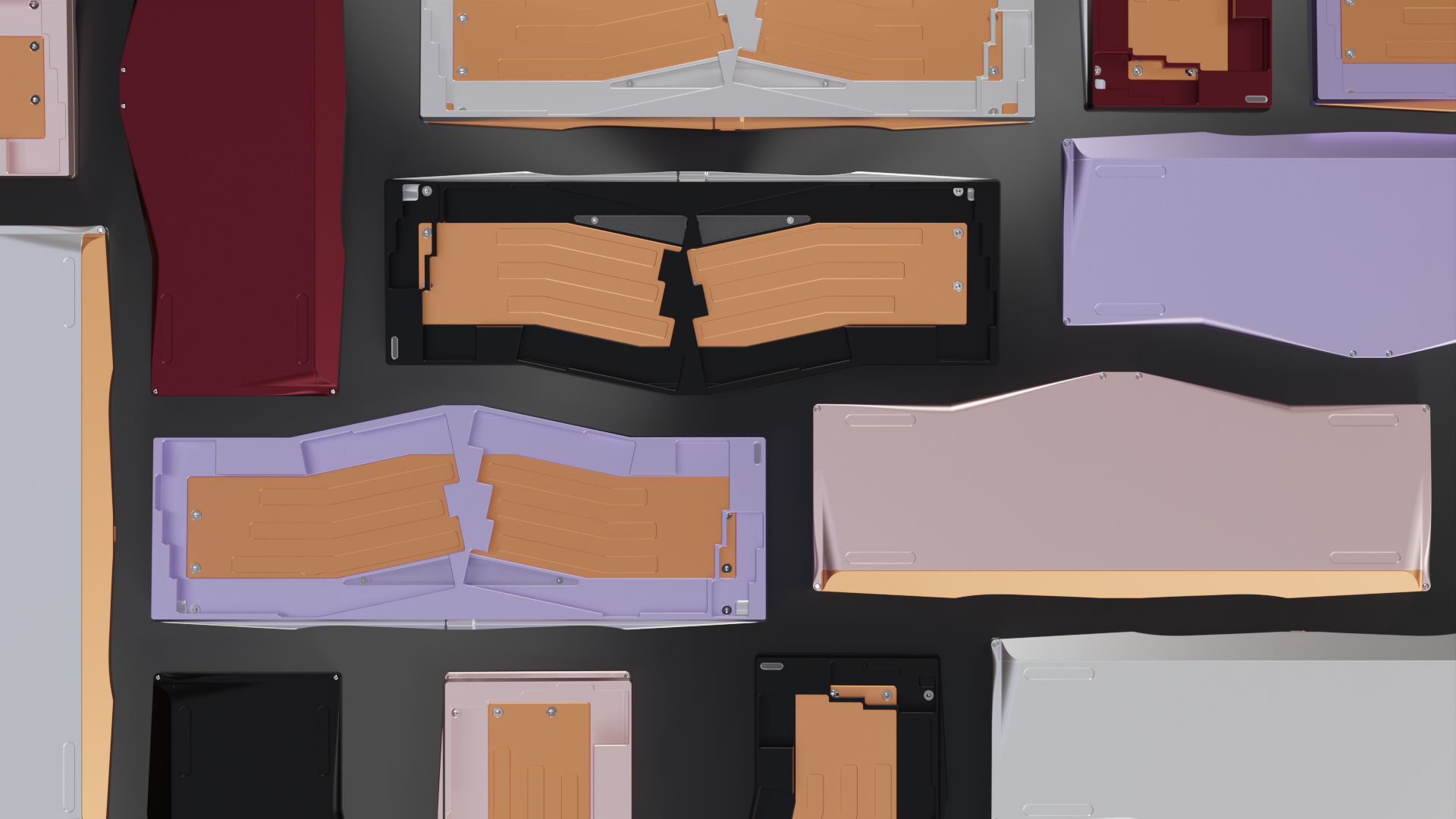

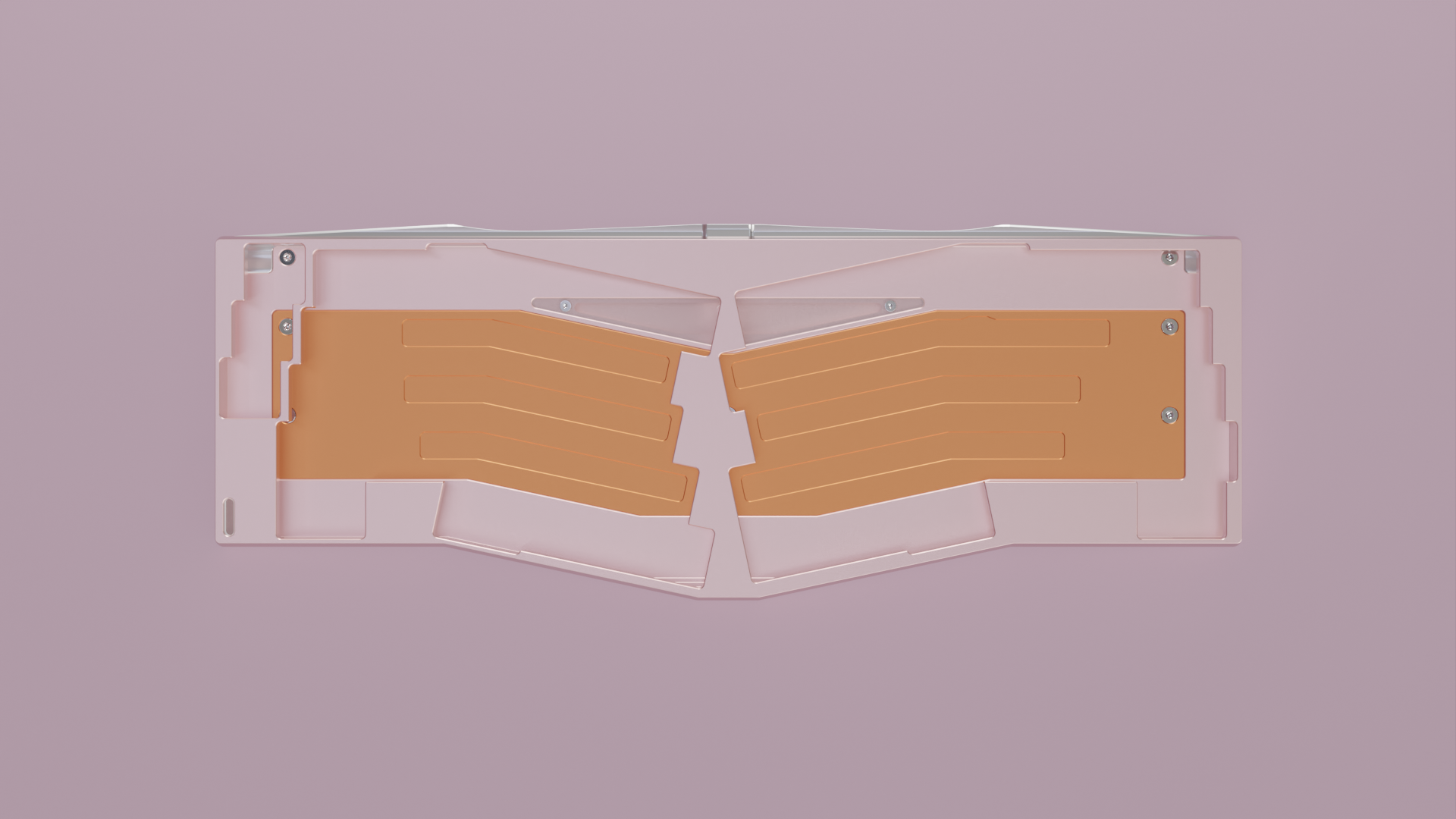

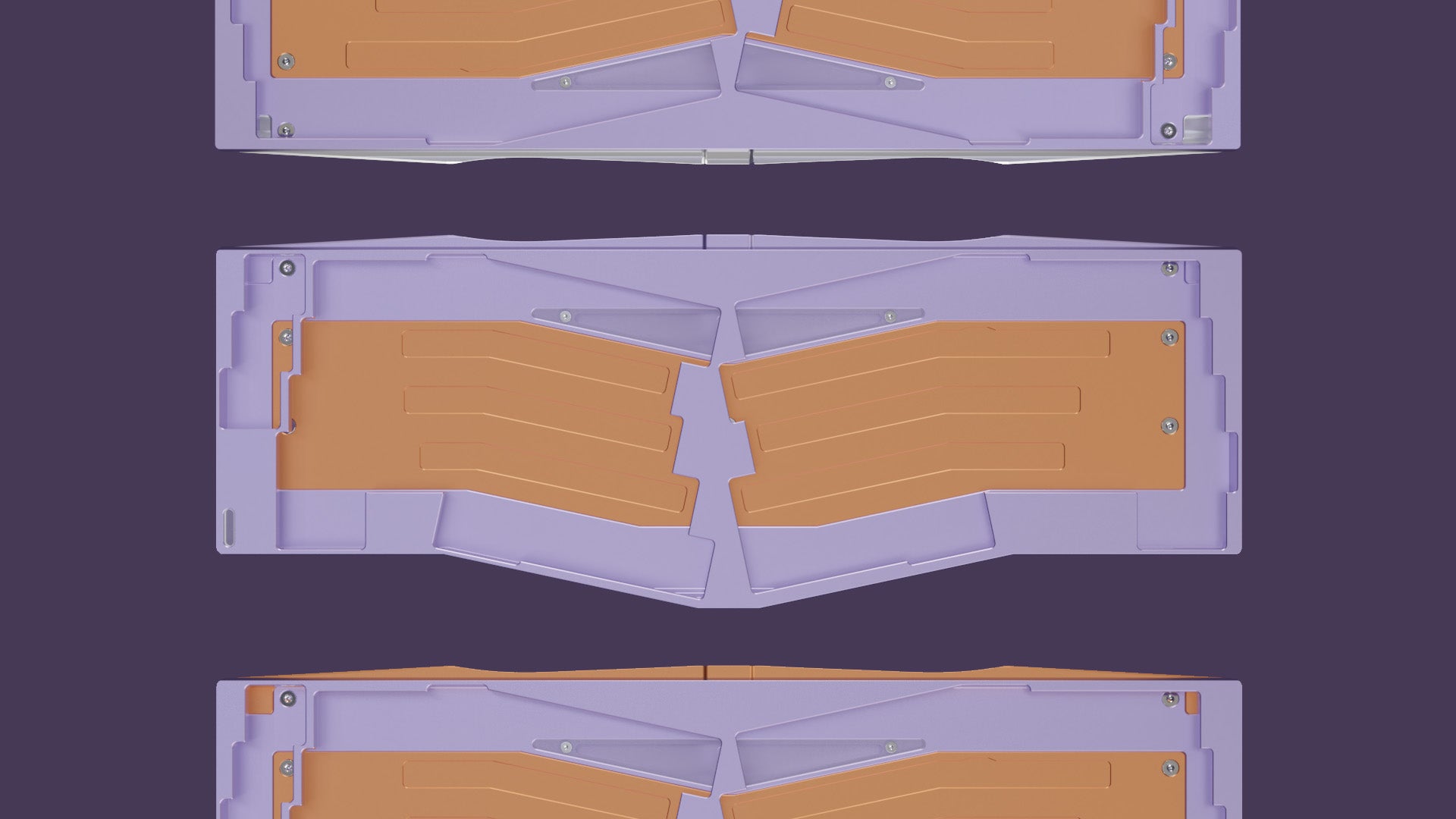

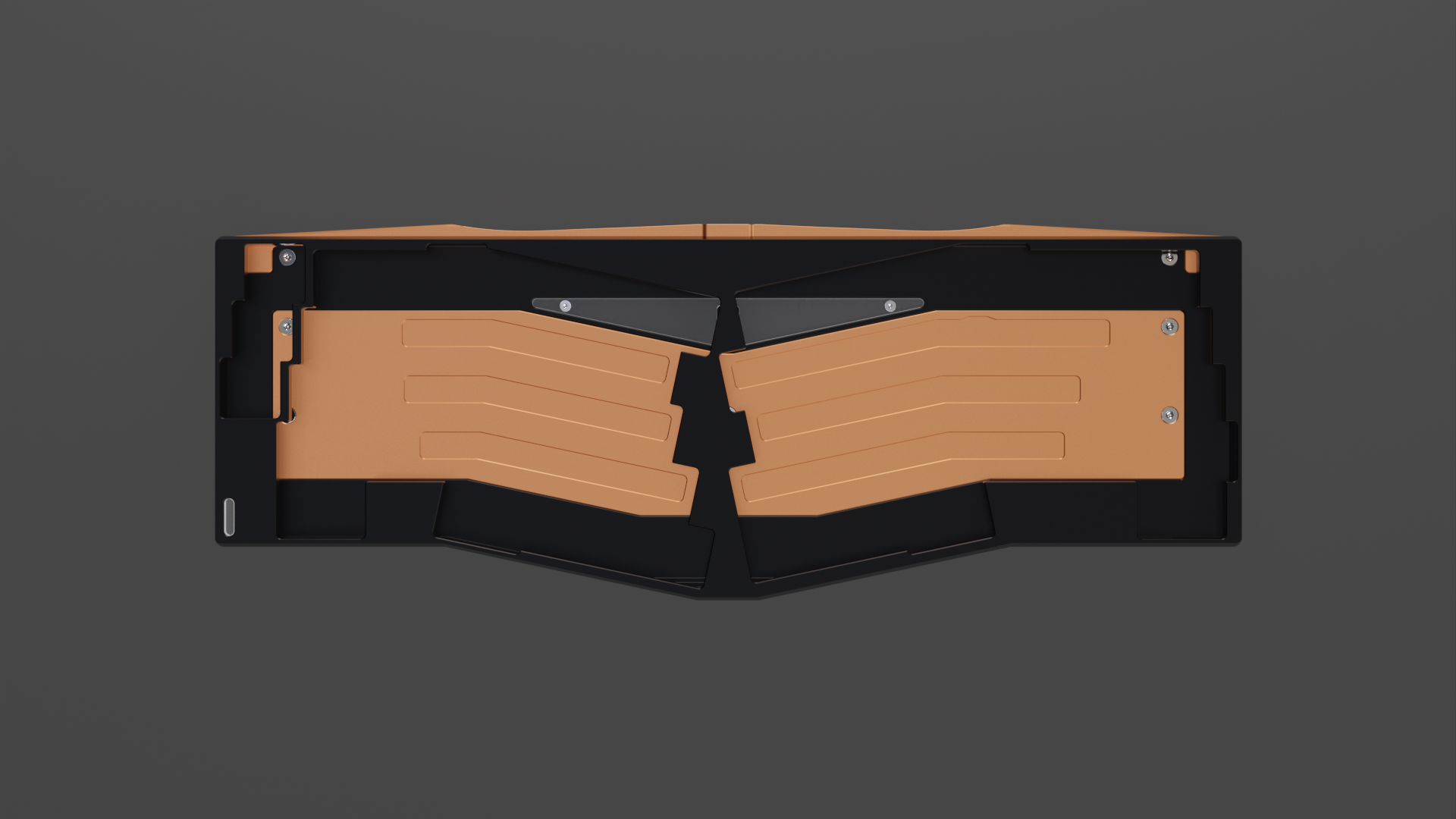

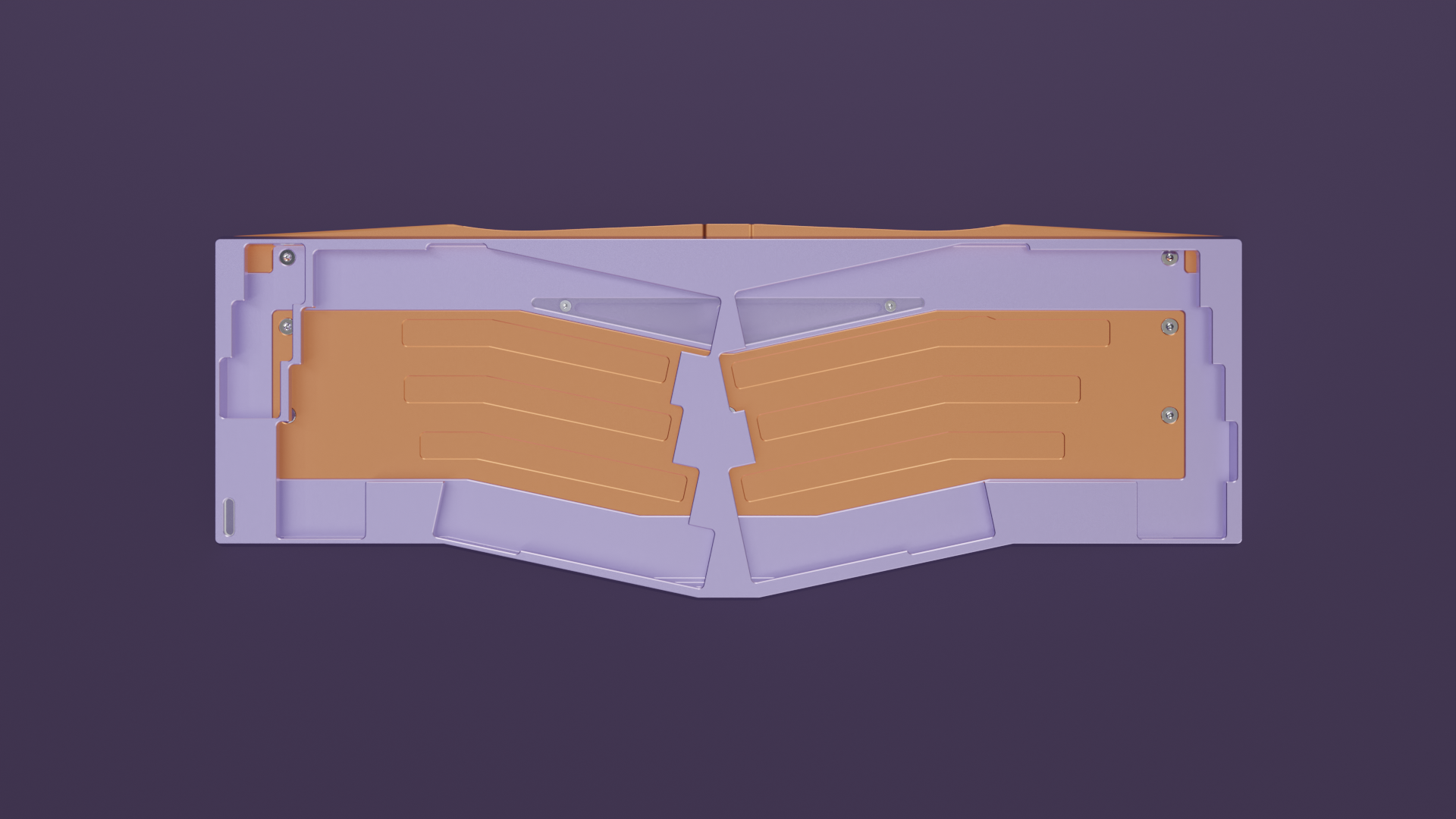

   Top / Bottom Shell: 6063 Aluminum, 5 color choices (Black, Silver, Light Purple, Dark Red, Pink)

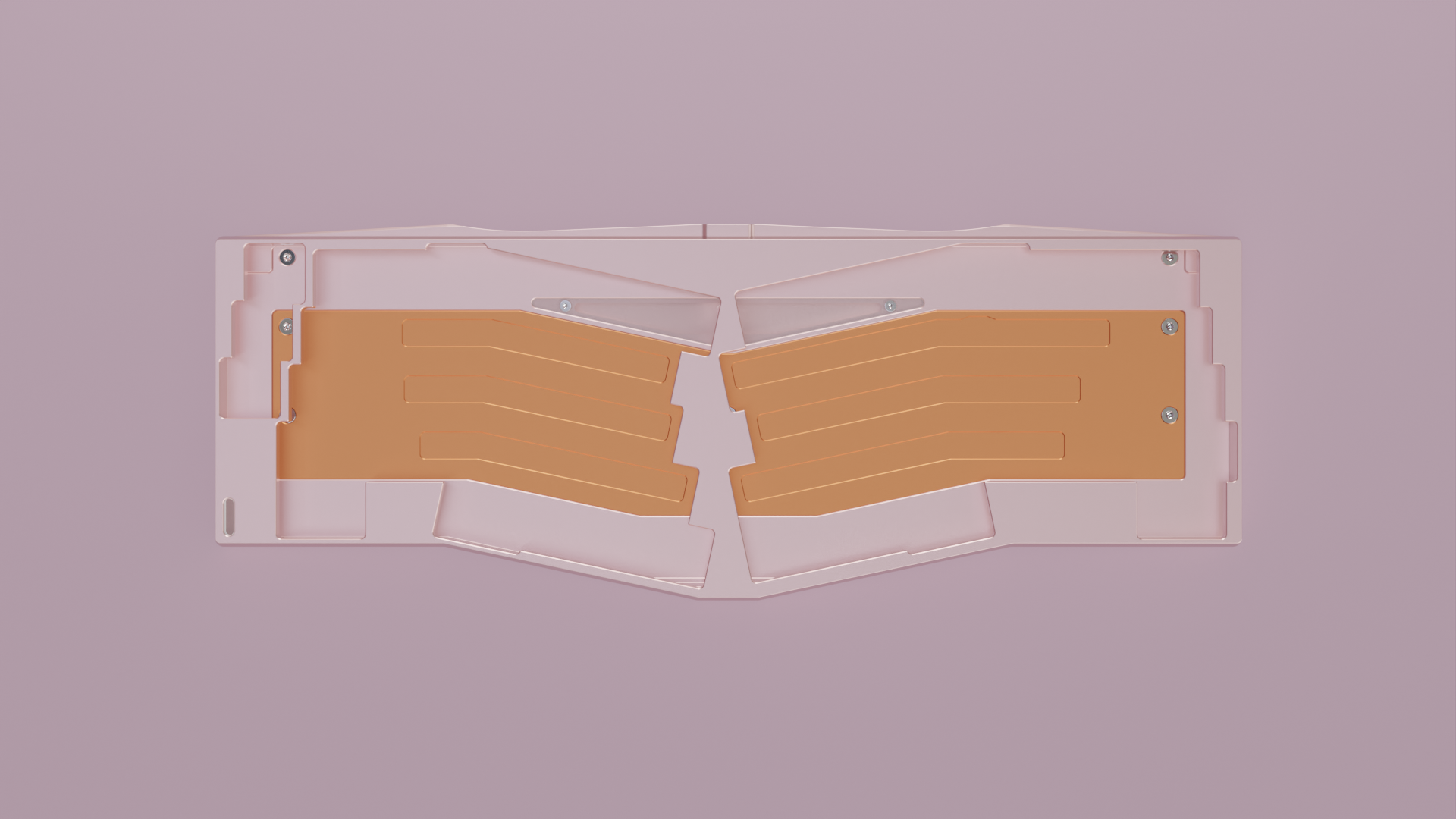

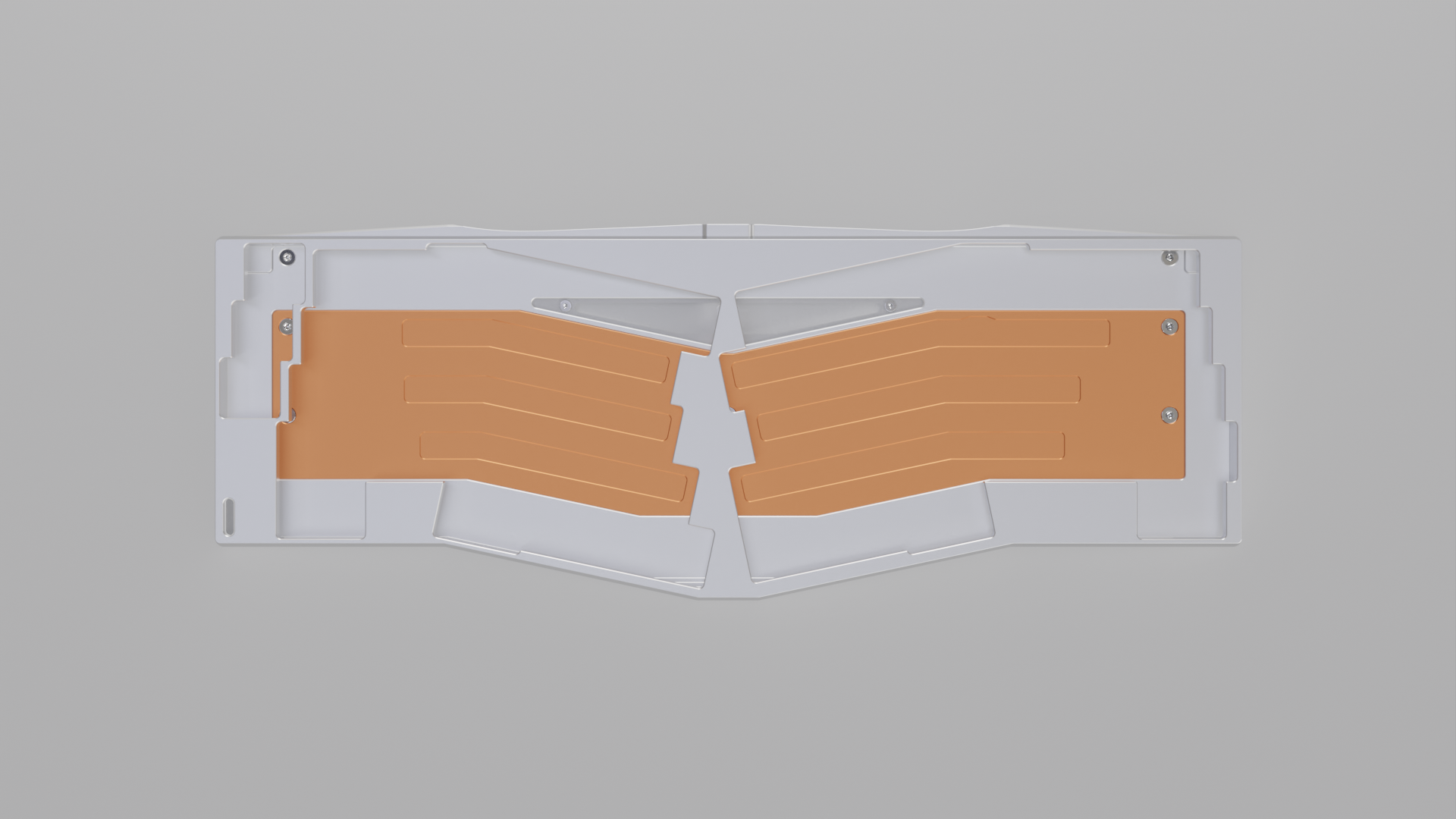

   Inner Weight: Coated Sandblasted Copper

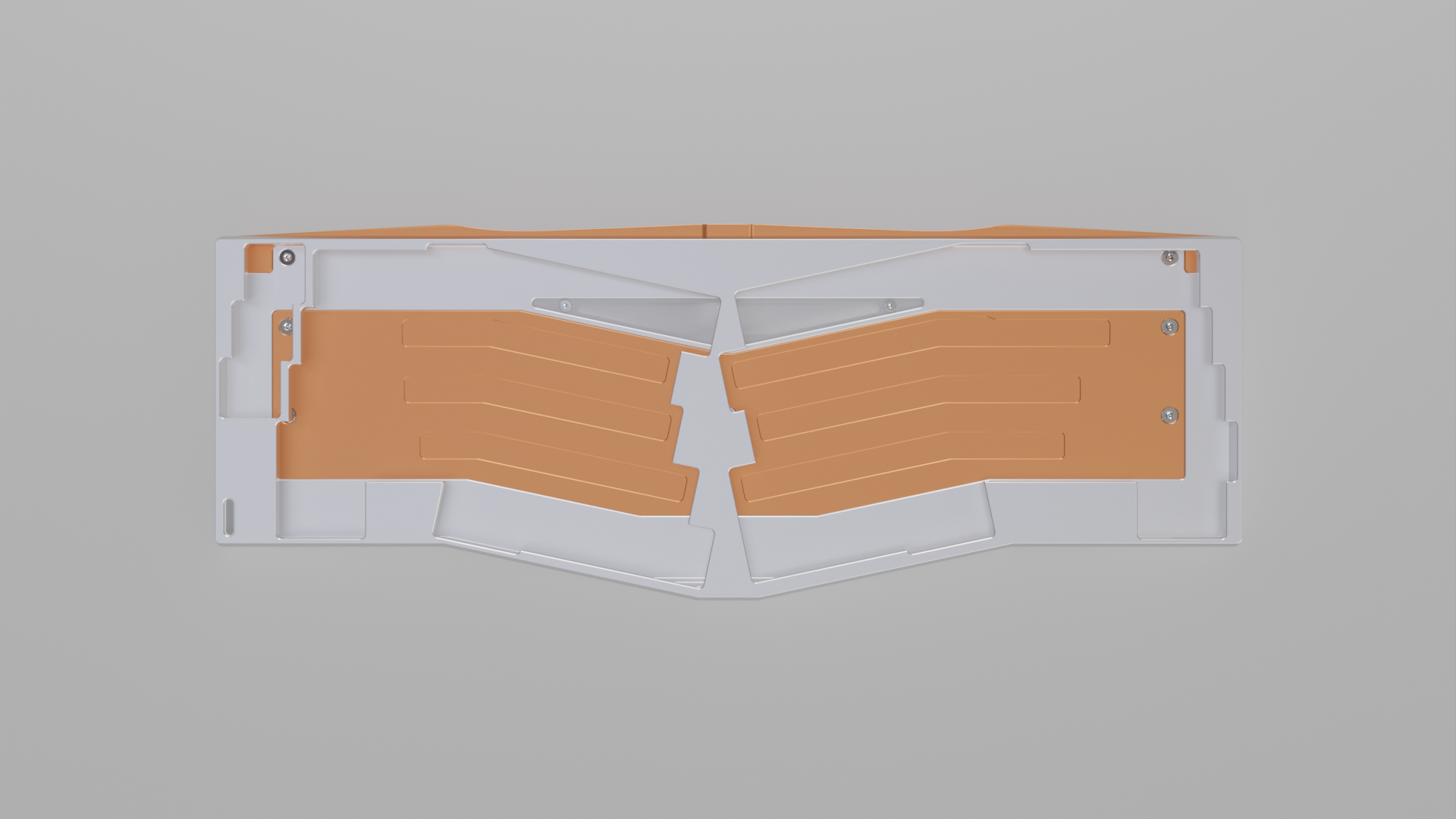

   Rear Accent: 6063 Aluminum, Coated Sandblasted Copper, Raw Machined 304 Stainless Steel

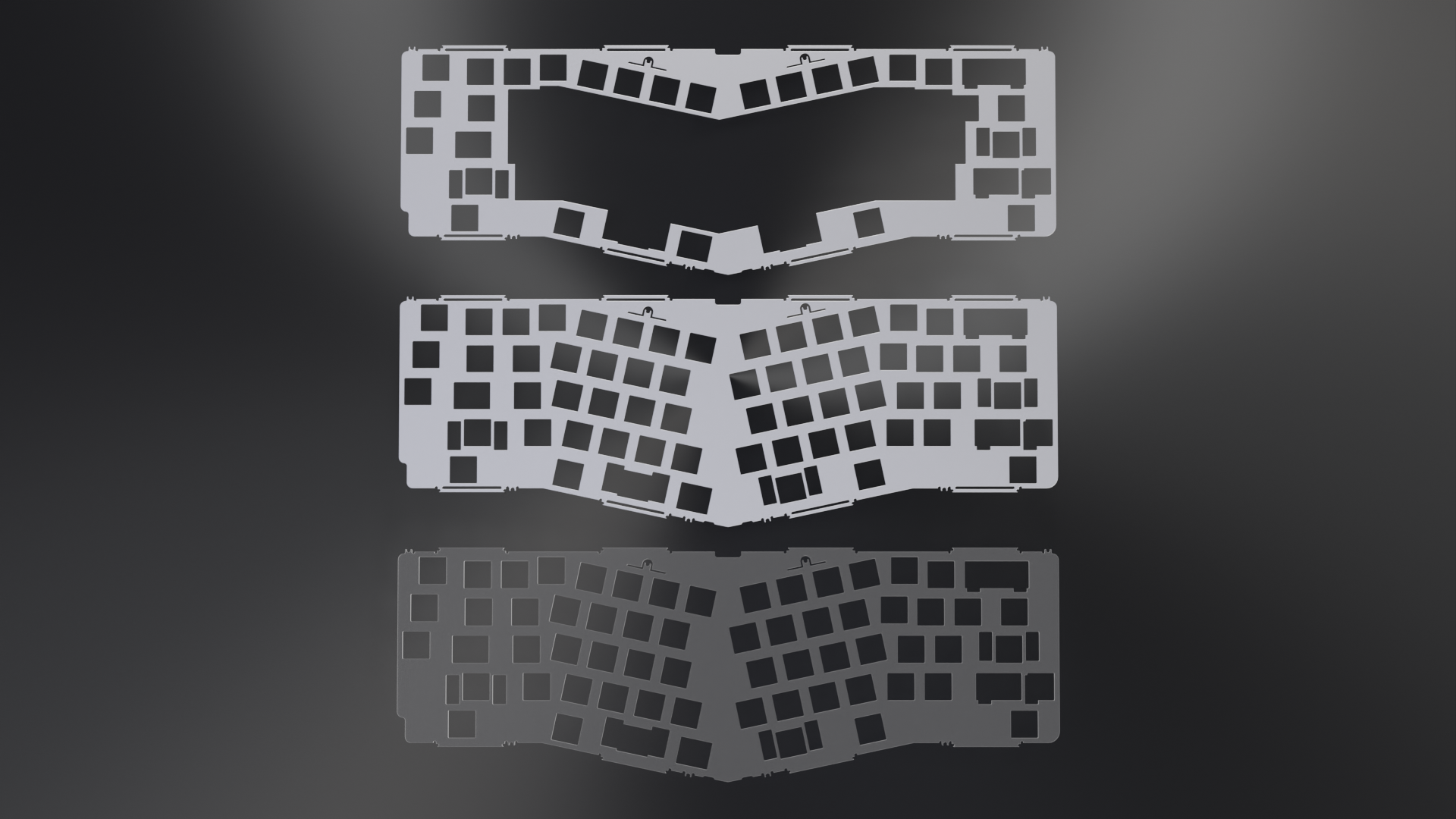

   Switchplate (Color-matched to case), Alu Leaf, Alu Half leaf, or Polycarb Full Plate

- Weight: With Aluminum Accent piece: ~3.1lbs built (1406.14g), 2.45lbs unbuilt (1111.301g)
- Manufacturer: DDS

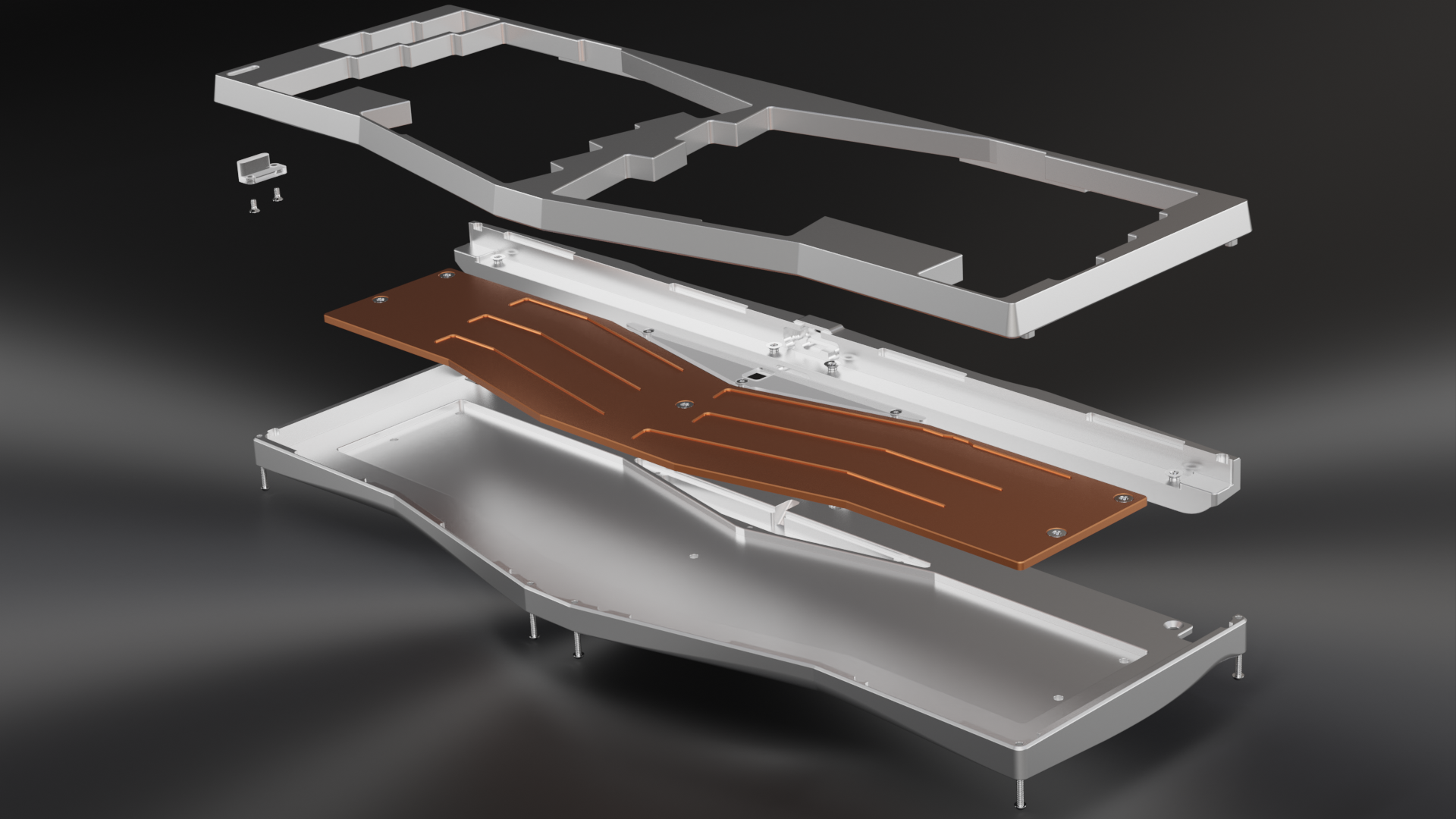

Components Included:

Basic kit includes:

- Aluminum Top + Bottom Shell set in 1 of 5 color choices

- Rear accent piece (Aluminum, Copper, or Stainless Steel)

- Copper inner weight

- Light diffuser for indicator lights

- Internal daughterboard wire cover

- Switchplate (Aluminum plate option will be color-matched to case)

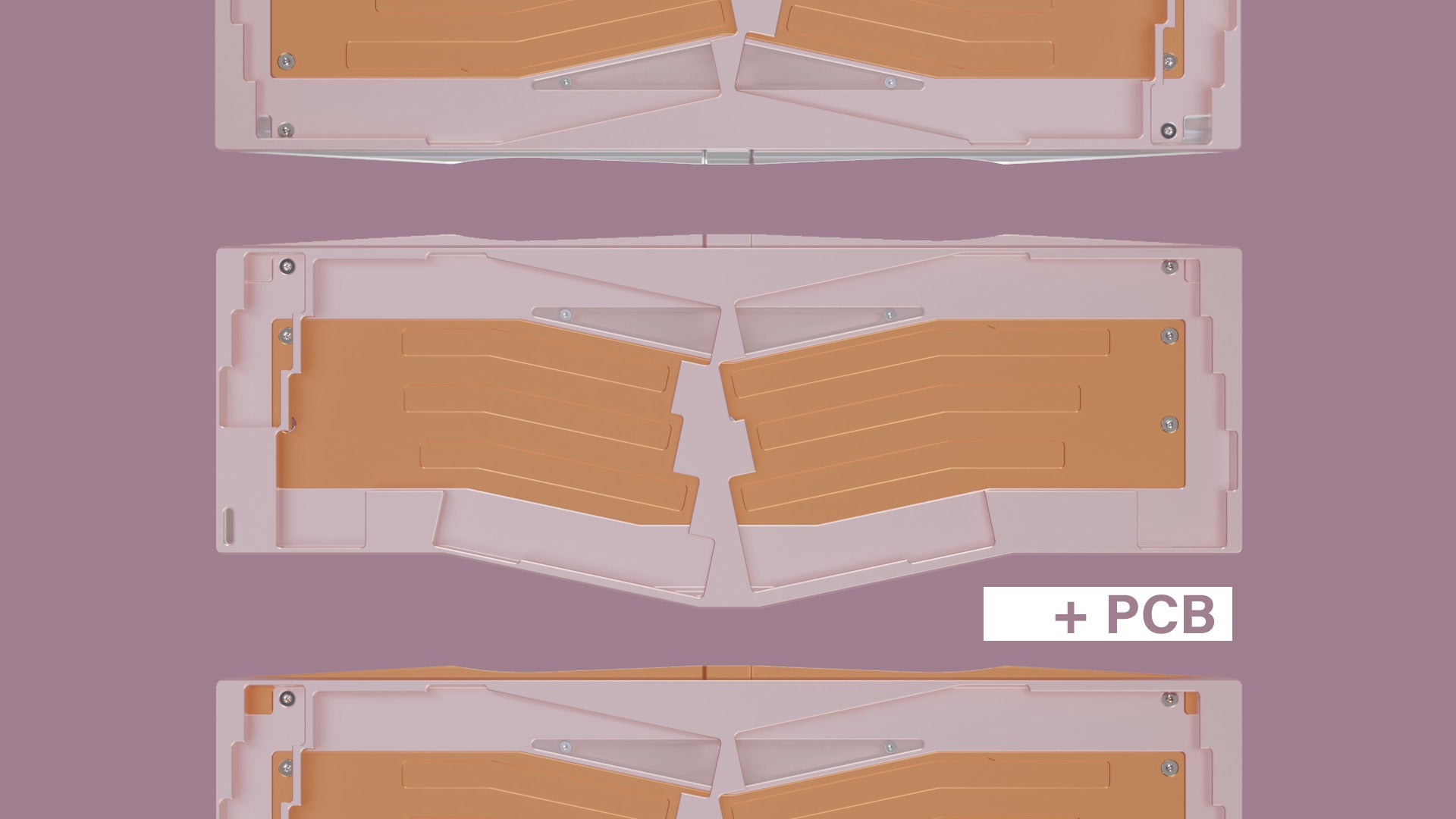

- PCB (Sneakbox M5 with daughterboard, or Sneakbox AliceClone), indicator LEDs already installed. (Note: PCBs do possess RGB underglow, but due to shell design not utilizing under-lighting, the underglow will be turned off by default)
for more information, please check the M5 product page, and the AliceClone product page

- Silicone Feet sets in multiple colors

- Case screws
    M2 x 12mm Button Head Torx Screws
    M2 x 4mm Button Head Torx Screws
    M3 x 4mm Countersunk Torx Screws
    M2 x 4mm Countersunk Torx Screws

- Screwdrivers
    Spare T6 Torx Drivers
    Spare T10 Torx Drivers
    4.5mm Hex Nut Driver

- M3x3x3mm Male Female Spacer

- Plate Mounting O-Rings
    O-Rings: 22mm OD x 18mm ID x 2mm

- Sneakbox Alice Zipcase


- UPS within Continental United States. USPS Priority to Hawaii, Alaska, US Territories, and APO/FPO Military addresses. UPS to Canada. DHL internationally elsewhere.


Group Buy Notes:
- Due to the anodizing process, anodizing colors may vary. Some color variance is unavoidable. Swatches for the colors are shown below. Although we expect the colors to be close to what is shown, these colors may differ from what is shown below based on various lighting conditions and among different anodizing batches.
- Group Buy starts: November 19, 2023 @12 noon CST
- Group Buy ends: December 17, 2023 end of day
- Est. shipping: Q2 2024 (Apr-May), barring any delays. Disclaimer: shipping date subject to change.
- Group buy items are non-refundable. Cancellations not accepted.
- Depending on quality inspection, this may be a source of delay in shipment.
- Shipment to participants will be issued once QC is completed.

Color swatches:
